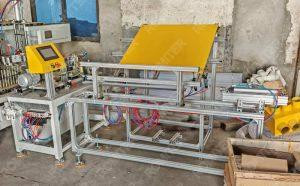

Automatic Paint Roller Brush Cutting Chamfering Machine is used to cut long brush tubes to set size and chamfer the brush roller. Paint Roller Brush Making Machine adopt PLC control which monitors every step of working and automatic fault warning. Paint Roller Brush Machine includes the function of head trimming, tube cutting, first combing, second combing, front chamfering, back chamfering, cut bristle and collect fly bristle. Machine function settings can be selectively opened and closed for functions: straight head, primary comb, secondary combing, chamfer, trimming. Paint Roller Frame Brush Making Machine is equipped with ø38mm tube shaft, the processing length specification can be adjusted for 4~11 inches, we can also customize the specification shaft according to customer requirement. Paint Roller Brush Head Making Machine can save customers labor, reduce production cycle time, and reduce production and use sites.
Note: This machine can connect two sets of brush fabric winding machines and two sets of brush internal roller and cap assembling machines to complete one full automatic line.
Table of Contents
Structure Drawing of Paint Roller Brush Cutting Chamfering Making Machine
Specification of Paint Roller Brush Cutting Chamfering Machine
| Model | RM-BCC800 |
| Capacity | 800pcs/h |
| Brush Length | 3~11inch |
| Voltage | Voltage AC220V / 50Hz |
| Power | 6KW |
| Air Compressor | 1.5m3/h（ 0.5~0.8Mpa） |
| Chamfering Angle | 10~55 |
| Dimension | 3200*1500*1650mm |
| Weight | 1.3t |
Working Video of Automatic Paint Roller Brush Cutting Chamfering Machine
Company Profile
Romiter Machinery Co., Ltd. is a market-leading designer and a manufacturer of brush machinery. we focused on researching and designing the machinery for different types of brush manufacture solutions. Now, Our factory can provide wooden paint brush handle forming machine, automatic wooden brush ferrule nailing machine, Wooden Brush Handle Round Forming Machine, Wooden Paint Brush Handle Surface Shaving Machine, Wooden Brush Handle Hole Drilling Machine, Paint Brush Wooden Handle Sanding Machine, Brush Bristle Mixing Machine, Brush Ferrule Bristle Filling Machine, cosmetic wooden brush handle machine, Paint Roller Frame Handle Making Machine, Paint Roller Brush Making Machine, Paint Roller Frame Cage Assembling Machine, paint roller frame handle assembling machine, toothbrush making machine and brush metal ferrule making machine.
Romiter Brush Processing Machine meets Europe Quality Requirement. with CE Certification
Welcome to contact us for more information.
