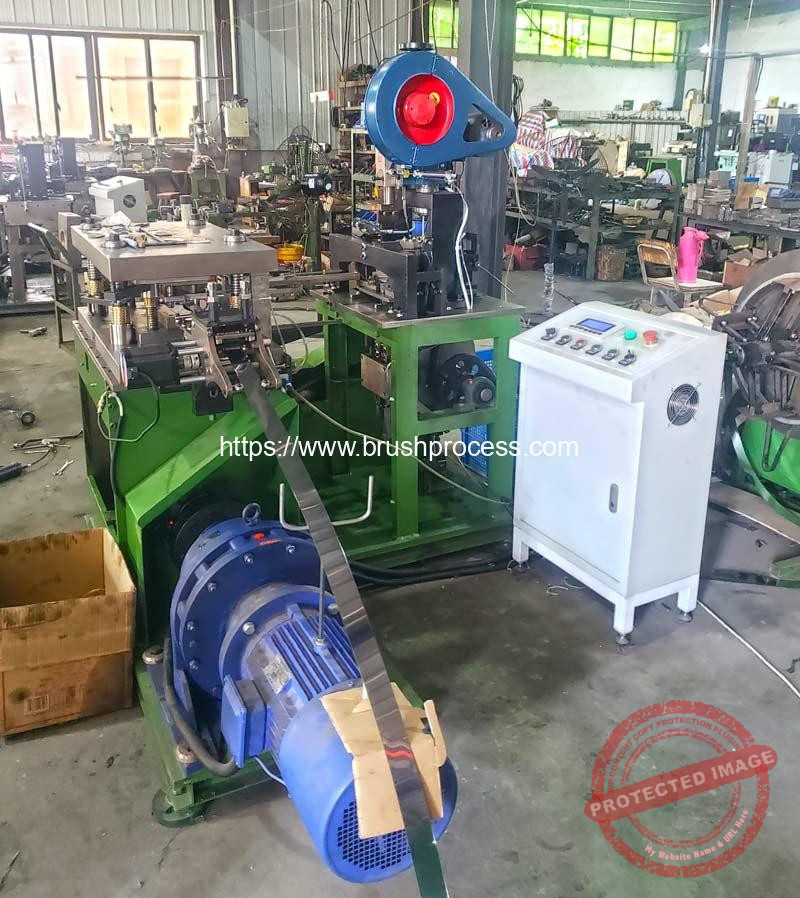

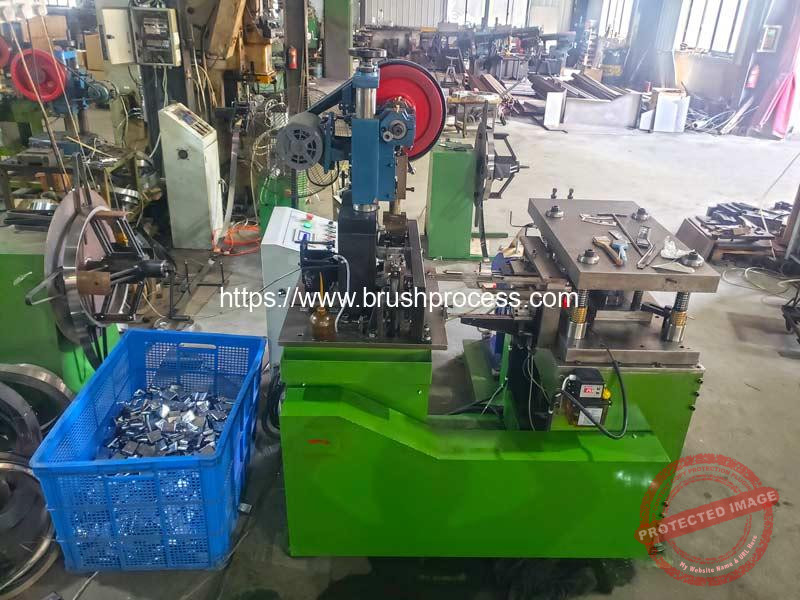

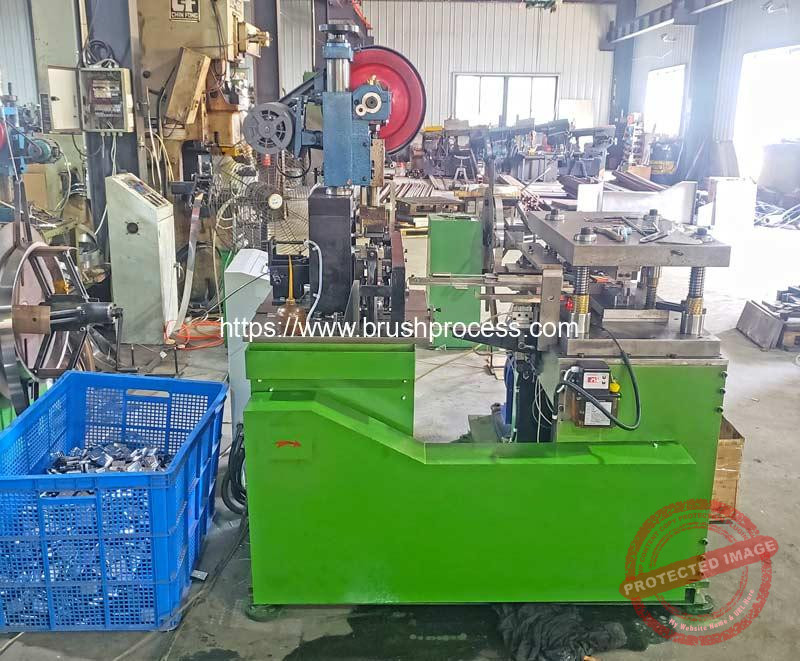

Mechanical Type Paint Brush Metal Ferrule Making Machine is used to make paint brush metal ferrule with the cam press for steel belt punching cutting which do not need punching machine. Full Automatic Brush Metal Ferrule Machine has the advanced feature of low noise and stable working than previous punching type paint brush metal ferrule making machine. To use the brush ferrule making machine, the steel belt will be fed into the machine and then passed through the dies, which cut and bend the shape to a brush ferrule. These machines are typically used in large-scale production settings, such as factories that manufacture paint brushes for commercial use. They help to automate the process of ferrule making and increase production efficiency.
Advantage Feature of Mechanical Type Paint Brush Metal Ferrule Making Machine

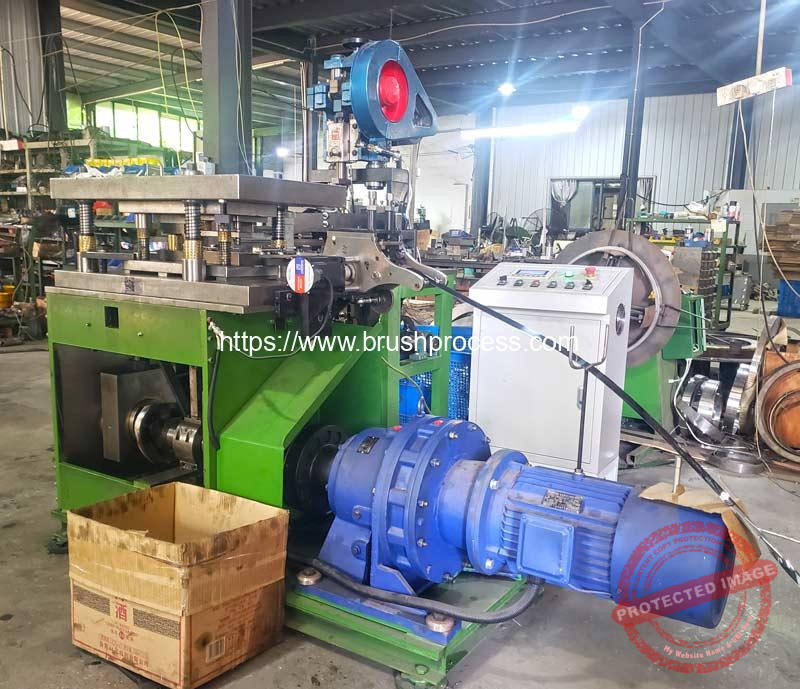

- Low Noise (no need punching Machine)
- Working More Stable and Product Size More Accuracy (Change Slide move to Rolling Move)
- design with safety checking function and when metal belt feeding or cut steel belt feeding has a problem. the machine will automatically stop.
Specification of Paint Brush Metal Ferrule Making Machine
Model | RM-PBFM35 |
Suitable for Brush Ferrule Size | 1-6inch |
Power | 7.5kw(380v) |
Capacity | 32-38pcs/min (variable frequency speed control system) |
Control System | Step Feeding System, PLC Control and Accuracy +-0.1mm |
Compressed Air | Pressure: 4-6kg,Volume 1- 2L/min |
Lubrication System | Automatic Lubrication |
Length range | 0-400mm |
Max Counting | 0-200000个 |
Speed | 50-3399mm/s |
Accuracy | 0.05-0.1mm |
Space Require for Install | 3m*1.8m |
Working Video of Paint Brush Metal Ferrule Making Machine
Company Profile
Romiter Machinery Co., Ltd. is a market-leading designer and a manufacturer of brush machinery. we focused on researching and designing the machinery for different types of brush manufacture solutions. Now, Our factory can provide wooden paint brush handle forming machine, automatic wooden brush ferrule nailing machine, Wooden Brush Handle Round Forming Machine, Wooden Paint Brush Handle Surface Shaving Machine, Wooden Brush Handle Hole Drilling Machine, Paint Brush Wooden Handle Sanding Machine, Brush Bristle Mixing Machine, Brush Ferrule Bristle Filling Machine, cosmetic wooden brush handle machine, Paint Roller Frame Handle Making Machine, Paint Roller Brush Making Machine, Paint Roller Frame Cage Assembling Machine, paint roller frame handle assembling machine, toothbrush making machine and brush metal ferrule making machine.
Romiter Brush Processing Machine meets Europe Quality Requirement. with CE Certification
Welcome to contact us for more information.
