Automatic Paint Roller Brush PP Tube Extruding machine is used to make the roller brush plastic tube. It mainly includes plastic extruding machine, pipe cooling shape fixing the machine, multi-contact belt pp tube drawing machine and pp tube sawing cutting machine. For internal diameter 38MM and external diameter 41MM tube, The roller brush tube making speed is 120m per hour. We can produce different diameter roller brush pp pipe by changing parts. Romiter Roller Brush PP Pipe Making Line adopts the advanced technology on the market, the roller brush pipe surface is smooth, no chips, no burrs, no scratch. The whole roller brush pp tube making machine need 12m2 space for installation and electricity consumption 90KW per day.
Main Parts of Roller Brush Tube Making Machine

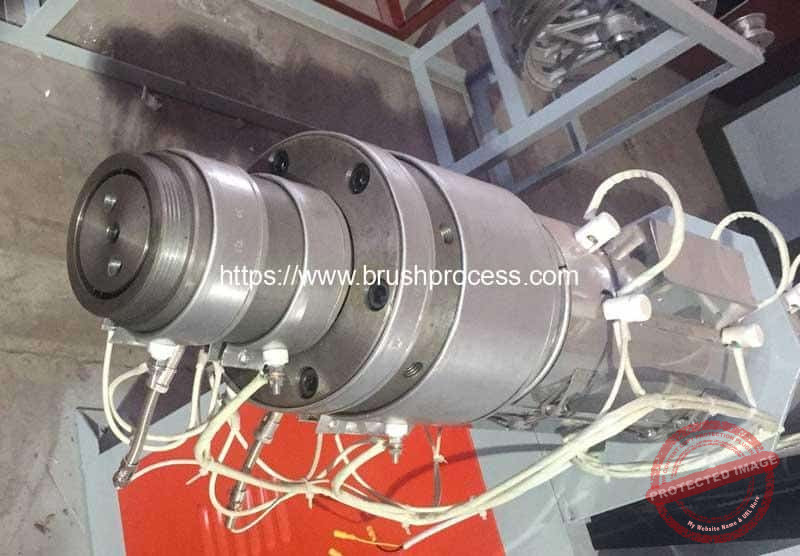

1. ￠50 Precise extruding and molding production line
Screw Material: High strength nitro-alloy steel and high precision gradually-deformed screw, with the rigidity of HV950-1100, and the nitration case depth of 0.4-0.7mm: a set of special screw assembly and disassembly tool is attached for each device.
Screw diameter:50mm
Screw length/diameter ratio:28：1
Screw revolution speed12～100rpm
Machine barrel: High strength nitro-alloy steel and high precision inner circle grinding process (rigidity is HV950-1100)
Removable frame
Senior PU universal movable caster wheel
2. Vacuum Pipe Cooling and Shape Fixing Machine
Vacuum Shaping Water Tank and Cold Water Tank is used to cooling the roller brush tube or pipe. The water tank adopts stainless steel SUS304. Water tank adopted vacuum-assisted shaping technology to ensure the precision and roundness of the pipe.
3. Multi-contact belt drawing machine
High precision guide column guidance system
Lead screw center height and tension adjustment
High efficiency surface wearable PU traction belt:
Low inertia belt pulley
High efficiency surface wearable PU traction belt:
Driver power of Fuji high precision variable frequency controller: 2KW
Motor drive: 2.2KW
4. PP Tube Sawing Cutting Machine
Saw blade cutting
Slide rail reciprocating platform
Air clamper
Pneumatic material reversing rack
PLC programmed control
Automatic switching off counting display
5. Extruding Roller Brush PP Pipe Stacker
Specification of Automatic Paint Roller Brush PP Tube Extruding Machine
| Model | RM-PEM5 |
| Power | 30kw |
| Compressed Air | 0.4-0.6Mpa |
| Speed | Ø12mm Internal Diameter Tube:5.5m~6m/min |
| Ø38mm Internal Diameter Tube:3.5m~4m/min | |
| Control Method | PLC |
| Cutting Length | 1.45m~1.64m |
| PP Tube Internal Diameter | Ø12mm~Ø56mm |
| PP Tube Thickness | 1.0mm~1.5mm |
| Dimension(L*W*H) | 14500mm*2000mm*1500mm |
Working Video of Paint Roller Brush PP Tube Making Machine
